eDisplay - Display Integrated MCM Surface Technology (Pro 5.0)

eDisplay Patented Technology

eDisplay is a newly invented, high-performance surface material available exclusively in the MCM Pro 5.0 Series from Taka Design MCM Pte Ltd. It delivers advanced display functionality through a state-of-the-art light-guiding system embedded within the surface layer.

The core functionality centers on state-of-the-art control of embedded microstructures within its composition, enabling efficient, unidirectional guidance of light. At the microscopic level, a precisely constructed network of optical channels is engineered to direct illumination from optoelectronic elements along predetermined paths, ensuring light exits through designated surface zones with clarity and coherence resulting in seamless video output.

In addition to its advanced functionality, eDisplay features refined aesthetic treatments that emulate textures such as natural stone, warm wood, or the rustic look of brick rough finishes. These surface designs are virtually unaffected by internal light conduction, ensuring that the system maintains a pleasing visual effect even while actively displaying video content. Moreover, eDisplay is engineered to minimize environmental impact throughout its lifecycle, aligning with modern sustainability goals and green building standards.

eDisplay is poised to redefine the future of visual surfaces across architectural decoration, ambient signage, and digital display environments. As an advanced material that seamlessly blends design with display capability, it opens a bold new chapter in display technology, where innovation meets aesthetic expression.

eDisplay Curtain Core Values

1. Architectural Revolution

A. Seamless Material-Display integration: Instantly convert stone,wood, or brick facades into 4K displays-disappearing when powered off. Interior surfaces such as walls, ceilings, and floors become interactive displays.

B. Invisible design: integrated display units with the building material, zero-exposure design, replacing traditional external LED screens.

2. Solar-Storage-Display System

Paired with eBIPV Nubestone Curtain, this system cuts external power consumption by 100%, offering a sustainable display-generation-storage solution.

Learn more eBIVP

New MCM eBIPV Pro 5.0

3. Unlocking Commercial Value

Outdoor: Facades transform into 2,000-nit digital billboards, the Ad revenue boosts building value.

Indoor: Retail walls instantly become immersive product displays, increasing customer stop time by 40%.

eDisplay for Indoor Advantages

1. Design Flexibility and Aesthetic Diversity

It easily accommodates a mix of different materials and colors to meet diverse aesthetic needs, allowing for personalized customization based on interior design styles and brand communication requirements. In contrast, traditional LED screens offer limited options in materials and colors, often appearing incongruous and failing to harmonize with the interior space's style.

2. Integration of Application Scenarios and Spatial Design

As part of the interior wall, ceiling, and flooring decorative materials, eDisplay seamlessly blends with the indoor environment, creating a clean, elegant, and stylish spatial atmosphere. This integration provides unique advantages for information display and brand communication in commercial and public building interiors.

3. Sustainability

Used in combination with eCovering materials, this approach achieves information display while reducing carbon emissions, leading a new trend in sustainable interior space design and decoration

eDisplay for Outdoor Advantages

1. Integration of Architecture and Display Technology

Revolutionarily integrating display technology with building materials, allowing for seamless switching between the natural textures of stone, wood, or brick walls and high-definition displays without the need for additional LED screens. When powered off, it restores the aesthetic beauty of the architecture.

2. Integration of Photovoltaics and Display

The eDisplay seamlessly integrates with the eBIPV system, powered by the eBIPV energy storage system. This innovation not only ensures the display quality of the eDisplay but also enhances the energy efficiency of the building, injecting green energy into smart cities.

3. Dual Enhancement of Durability and Sustainability

The surface texture of eDisplay is formed using inorganic nanomaterials, offering excellent UV resistance, making it more durable than LED screens. Its components are recyclable, educing resource extraction and minimizing waste disposal.

MCM eDisplay Indoor Application

Hotel Background Wall

"More than a wall, it is a gateway to the universe, a stone façade that broadcasts the stars, inviting every guest to journey beyond the ordinary."

Hotel Guest Room Wall

"The guest room walls unfold like a living canvas of ink wash painting, subtle, fluid, and ever‑changing with the rhythm of time, inviting guests into a tranquil dialogue between art and architecture."

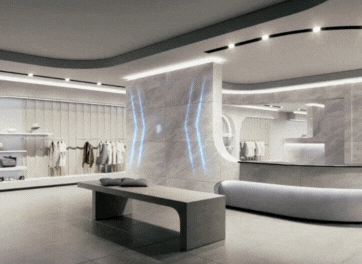

Commercial Retail Space

"Silent in presence yet dynamic in spirit, the shop’s wall surfaces echo the calm of natural stone while unveiling intelligent visions. More than a retail space, it becomes a canvas of artistry and innovation, telling the brand’s story with elegance, immersing customers in an environment that inspires trust, loyalty, and desire to engage."

Commercial Retail Space

"The restaurant wall transforms into a shimmering galaxy of data, where an intelligent ordering screen elevates dining into a futuristic journey. Guests are immersed in a boundless experience, guided by light, motion, and innovation, making every meal unforgettable and every brand story resonate."

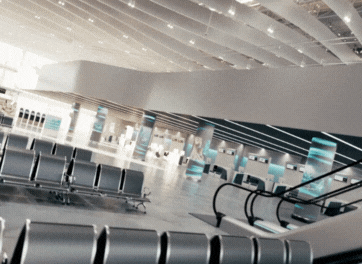

Rail Station Public Space Wall

"The public space wall redefines the waiting experience, transforming into a smart hub of technology where real‑time announcements and dynamic advertisements flow together. More than decoration, it creates value for passengers and brands alike, turning every pause into a moment of connection."

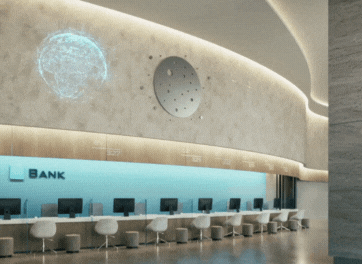

Bank Public Space

"The public space wall becomes a digital tapestry of stone and light, weaving announcements and advertisements into a flowing galaxy of information. Alive with technology, it enriches the waiting experience, turning idle moments into meaningful engagement and value."

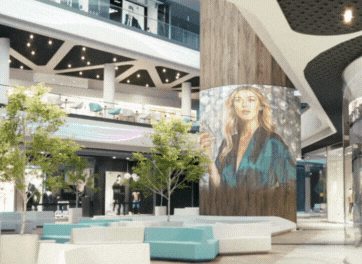

Public Space Cylinder Pillar

"The public space cylinder pillar transforms streams of light into living lines of poetry, where technology and commerce converge. Known as the flexibility material, it adapts seamlessly to design and function, a beacon of intelligent innovation that elevates public space and brand presence."

Public Space Cylinder Pillar

"Every space counts. The public space cylinder pillar breaks free from static constraints, transforming available surfaces into dynamic advertising channels. With vertically flowing light, it reconstructs the commercial narrative of public space, merging art, technology, and revenue generation into one luminous experience."

Reception Counter Wall

"The reception counter wall sheds its silent cloak, awakening as a living history book that breathes stories of the past. More than architecture, it becomes a brand canvas, enriching first impressions with cultural resonance and intelligent design."

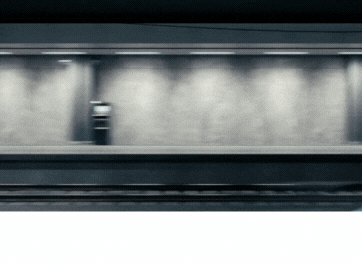

Rail Platform Wall

"It breaks free from monotonous stillness, transforming into a dynamic screen of arrival reminders and advertising opportunities. Each vibrant moment is imbued with the warmth of life, enriching passenger experience while generating new commercial value."

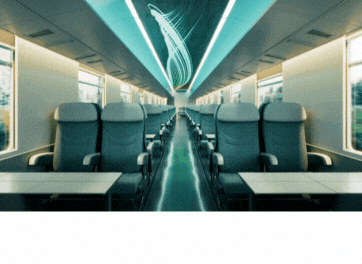

Smart Transportation

"The true aesthetics of rail transit are found in efficiency, where intelligent information guides passengers to their seats and transforms them into co‑constructors of a flowing painting. As the ceiling remembers each gaze, the journey is imbued with a lasting footnote of light, shadow, and brand resonance."

Indoor Application Cases

MCM eDisplay Outdoor Application

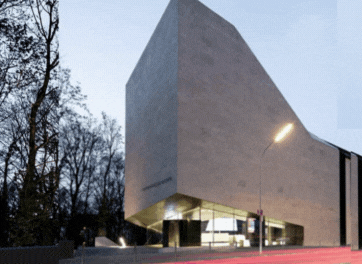

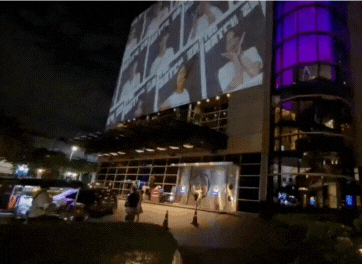

Building Exterior Wall

"The building façade transforms with MCM eDisplay, evolving into a dynamic digital advertising wall. As costly LED screens fade into history, sustainable and intelligent surfaces redefine architecture, delivering both brand impact and cost efficiency."

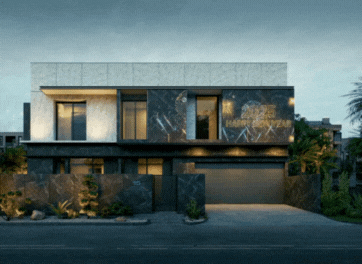

House Exterior Wall

"The exterior wall breaks free from silence, instantly transforming into a festive celebration screen. Powered by MCM eDisplay, it turns architecture into a dynamic stage for joy, and community connection."

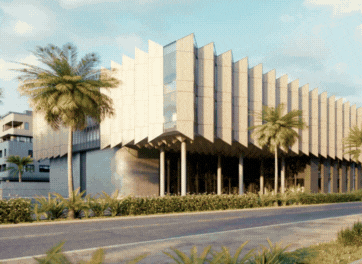

Commercial Building Wall

"This isn’t just a screen; it is a footnote to a city’s prosperity. With MCM eDisplay, dynamic commercial façades break free from static boundaries, transforming every wall into a showplace of culture, branding, and soaring commercial value."

Commercial Building Wall

"The commercial building wall transforms into an 8K movie screen, where meteor showers cascade across its surface. Powered by MCM eDisplay, architecture evolves into an immersive platform for spectacle, branding, and connection."

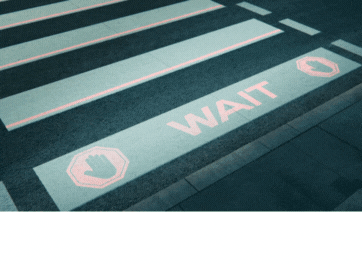

Traffic light Crosswalk

"The smart city's traffic light pedestrian crosswalk removes the awkwardness of traditional signage, transforming into a seamless guide that weaves the rhythm of urban traffic with invisible intelligence. More than function, it harmonizes movement and enriches the city’s flow, showcasing the power of connected urban spaces."

Outdoor Application Cases

MCM eDisplay Specifications

Download eDisplay Indoor & Outdoor Spec.pdf

Panel Size

Outdoor (night use only)：640×160/640×320/960×320/1280×640/1600×480
Outdoor (day & night)：640×320/1280×320/1280×640
Indoor：640×160/960×160/960×320/1280×640/1600×480

Resolution

Outdoor (night use only)：P4
Outdoor (day & night)：P6.67
Indoor：P2.5

Dry-Hanging Installation

1. Attach/Secure the aluminum brackets to the back of the panel with bolts and nuts.

2 Secure the aluminum rail with expansion bolts to the solid wall. Insert the aluminum brackets of honeycomb panel into the aluminum rail on the solid wall, then secure the brackets to the rail with screws (bolts and nuts).

Installation Note :

Pixel Density

Outdoor (night use only)：62500 dot/㎡
Outdoor (day & night)：22500 dot/㎡
Indoor：160000 dot/㎡

White Balance Brightness

Outdoor (night use only)：1000 – 2000 cd/㎡
Outdoor (day & night)：4000 – 5000 cd/㎡
Indoor: ≥800 cd/m² adjustable

Colour Temp

Outdoor (night use only)：3000 – 15000K
Outdoor (day & night)：6500 – 8000K
Indoor：3000 – 15000K

Power Consumption

Outdoor (nighttime use only): Maximum ≤ 1200W/m², Average ≤ 750W/m²
Outdoor (day & night): maximum 520W/m², average 173W/m²
Indoor: Maximum ≤861W/m², average ~287W/m²

Refreshing Freq

Outdoor (night use only)：50 – 60 Hz
Outdoor (day &night)：60 Hz
Indoor：50 – 60 Hz

Frame Rate

Outdoor (night use only)：≥1920 Hz
Outdoor (day & night)：3840 Hz
Indoor：≤3840 Hz

Working Temp

Outdoor and Indoor (day & night)：-20 ~ 50°C

Control System Adaptable

Outdoor (night use only): Colorlight
Outdoor (day & night): CHIPSSHOW / Windows
Interior: Colorlight

Maintenance Method

Outdoor and Indoor (day & night)：Back-access Maintenance

Remark

Outdoor and Indoor (day & night)：One finished panel includes cable,power supply, receiving card.

Use a laser rangefinder and digital level for wall positioning. Secure the custom keel with an impact drill using mechanical anchoring. Align the panel slots with the keel for initial fixation, then fine-tune and reinforce with specialized connectors to ensure precision and efficiency. Dry-Hanging Installation 1. Measuring The Wall: Use measuring tools to determine the wall dimensions and installation locations, marking the positions for brackets and mounting hardware. 2. Install Brackets: Mount the brackets securely on the wall. They should be sturdy enough to support the weight of the eDisplay components. 3. Secure The eDisplay Components: Hang the eDisplay components onto the brackets, ensuring they are aligned and leveled. Use screws and other tools to fasten them securely. 4. Seal Joints: Use matching colored caulk or trim to ensure a sealed finish. 5. Connect Power And Signal Cables: Connect the power and signal cables of the eDisplay to the appropriate ports, ensuring secure and reliable connections. 6. Debug And Test: After installation, perform debugging and testing to ensure the eDisplay functions correctly and displays images as intended. Precautions Safety First: Ensure personnel safety during installation by wearing necessary protective gear. Accurate Measurement: Perform precise measurements before installation to ensure the eDisplay components fit perfectly against the wall or frame and remain leveled. Choose the Right Installation Method: Select an appropriate installation method based on the installation environment, eDisplay component specifications, and weight to ensure safety and stability. Secure Fixing: Ensure the eDisplay components are securely fastened during installation to avoid any wobbling or risk of falling, and regularly check the installation status.

Maintenance

1. Cleaning - After acceptance, the frequency of cleaning should be determined based on the level of wall contamination, with a minimum of once a year. Use hand soap mixed with tap water, and avoid using organic solvents. 2. Curtain wall inspection and maintenance - A omprehensive inspection of the curtain wall should be conducted every five years, includ ing the panels, sealing strips, and sealants. Tighten any loose bolts, and for corroded connectors, remove rust and repaint or replace them. Loose or damaged panels should be repaired or replaced. Sealants and sealing strips that have fallen off or are damaged should be repaired or replaced. Damaged components or connectors should be replaced or reinforced if the anchoring is loose Regularly check the drainage system, and clear any blockages. Any loose or damaged hardware should be replaced. It should be completely exterminated after a natural disaster.

Collaborative Customization

Customized MCM eSolar Facade & eDisplay

We partner closely with architects and design professionals, offering eDisplay MCM coverings tailored to their unique visions. Our designs are exceptionally adaptable, ensuring we meet the specific demands of any project with seamless integration and outstanding results.

Download eDisplay Catalogue

(Version III 2025-12-06).pdf
